Temperature Sensing Safety Alarm
iCube includes a temperature sensing protection system. When the internal temperature is too high(245'C), the machine will stop working and alarm. After everything is normal, the machine can work again.
Sculpfun iCube Pro Max 10W Portable Laser Engraving Machine
-
Fast Shipping:
Local US & EU Warehouse for most of products -
30 Days Return:
Simply return it within 30 days -
1 Year Free Warranty:
Provide free replacement within 1 year -
2% rebate on orders:
Get 2% of your order back
Frequently Bought Together
Description
10W Powerful Cutting Laser: The iCube Pro Max uses 10W diode laser with 0.08mm laser focus. It has stronger laser performance, cutting penetration and higher working efficiency, which can engrave or cut more difficult materials and complete the laser tasks faster.
High-Speed Engraving: iCube Pro Max 10W laser engraver with the 32-bit motherboard greatly improves the engraving efficiency, which can reach 10000mm/min engraving speed.
With Smoke Filter: Sculpfun iCube laser engraver is equipped with the smoke filtration system that effectively filters the smoke generated during the engraving and cutting process without the enclosure, which makes it more convenient to engrave and cut in an office or home. Bringing more usage scenarios and enjoying the fun of engraving without limitation.
Multiple Connection Methods: The laser engraving machine supports mobile phone and computer system connection. You can connect to iCube machine via your mobile phone with Sculpfun APP, or you can connect to the computer with the BT function or Type-C interface data cable to use. It is compatible with Win7/Win8/Win10/Win11/MAC/IOS/Android/Linux system.
Temperature Alarm Function: Built with the temperature alarm device, the machine will stop running and emit a buzzer alarm when the temperature inside the engraving machine is over 45℃ to ensure the safety of users and equipment. And when the temperature descends, restart the machine to start the work.
Enclosed Eye Protection Shield: iCube portable laser engraver is designed with a detachable fully enclosed Acrylic material eye protection shield, which can effectively protect your eyes from different angles. It enables you to observe the laser engraving process without wearing the goggles.
Engraving Objects without Size Limit: With the unique semi-open structure design, there is no limitation by the size of the engraving objects. You can place them inside the machine or put the machine on the surface of some large objects to perform the tasks. The patterns engraving area is 120x120mm which can meet your various engraving demands.
Replaceable Laser Lens: Sculpfun iCube series adopts an innovative laser head that supports to replace the laser lens, which greatly improves the service life of the laser by more than 10 times longer than that of other general lasers. When the lens is damaged or dirtied after long-term use, it can be replaced to restore the cutting power.
Specification
Product Model: Sculpfun iCube ProMax 10W
Fan Speed: 5000RPM
Temperature Sensor: 45℃ Trigger
Bluetooth: 4.2
Wi-Fi: 2.4Ghz
Wavelength: 455nm
Engraving Area: 120*120mm
Laser Head Power: 10W
Image Format: JPEG/BMP/TIF/GIF etc.
Laser Spot: 0.08mm
Working Voltage: 110-240V AC, 50/60Hz
Working Current: 12V 5A
Optimal Focusing Distance: 40mm
Support System: Win7/Win8/Win10/Win11/MAC/IOS/Android/Linux
Operation Application Software:
Computer: LightBurn/LaserGRBL
Mobile Phone: Sculpfun APP
Product Weight: 3.2KG
Product Size(LWH):
262*300*226mm
Package Weight: 4.75KG
Package Size: 318*282*360mm
Packing List:
1 x Laser Engraver
1 x U-Shaped Shield
1 x Metal Plate
1 x Laser Head
1 x Power Adapter
1 x Power Cable
1 x Type-C Data Cable
1 x Cotton Filter Set
1 x Lens Repair Kit
1 x Goggle
1 x Basswood Board
1 x MDF
1 x Installation Instruction
Some Important Tips:
About the Engraving Materials:
Note that any specular reflective objects can not be engraved, otherwise the laser reflection will damage the laser head.
About the smoke filter:
A free set of cotton filter is attached with purchasing, it needs to be replaced periodically to ensure the filter effect.
About the laser lens:
A free lens is attached in the package with purchasing, which also can be ordered separately
Precautions:
●Because of the powerful laser, it is forbidden to run the engraving machine unattended. Please pause it if you're not around.
●Please refer to the user manual for detailed machine instructions and parameter settings.
●Please install the laser protective cover before operating the machine; if not, a pair of goggles is needed.
●Do not touch the laser with your hands, or it may burn your hands.
●Please avoid strong impact on the machine.
●Children under 14 are not allowed to use this product and children over 14 need adult supervision.
●Do not apply the laser directly to any specular reflective objects as this may cause injury to the operator or burn the laser.
Sculpfun iCube Pro Max 10W Portable Laser Engraving Machine
ICube instruction manual in six languages
Download
 |
 |
|
|
|---|---|---|---|
| Model | iCube | iCube Pro | iCube ProMax |
| Laser Power | 3W | 5W | 10W |
| Spot Size | 0.02mm | 0.06mm | 0.08mm |
| Bluetooth | 4.2 | ||
| Wi-Fi | 2.4GHz | ||
| Engraving Area | 125*125mm | 120*120mm | |
| Wavelength | 455nm | ||
| Engraving Definition | 3W＞5W | 5W＞10W | |
| Cutting Ability | 3W＜5W | 5W＜10W | |
| Working Voltage | 110-240V AC, 50/60Hz | ||
| Working Current | 12V 5A | 12V 7A | |
| Optimal Focusing Distance | 40mm | ||
| Temperature Sensor | 45°C trigger | ||
| Updown space | 50mm | ||
| Image Format | JPEG/BMP/TIF/GIF etc. | ||
| Support System | Win7 / Win8 / Win10 / Win11 / MAC / IOS / Android / Linux | ||
| Ultra-fine Laser | iCube uses the 3W diode laser with 0.02mm ultra fine laser focus. It has super fine engraving ability which can present delicate engraving image. This laser engraver is suitable for engraving detailed objects and can cut colored paper and create three-dimensional paper works. | iCube Pro uses the 5W diode laser with 0.06mm ultra fine laser focus. It has strong cutting penetration and engraving precision, which can cut up to 10mm soft board, 6mm Acrylic, and engrave ceramic, stainless steel as well as some fine patterns like QR code, bar code. The engraving pattern has high pixels and smooth and delicate surfaces. | The iCube Pro Max uses 10W diode laser with 0.08mm laser focus. It has stronger laser performance, cutting penetration and higher working efficiency, which can engrave or cut more difficult materials and complete the laser tasks faster. |
Space Saving Desktop Portable
Engrave crafts in various materials to add fun to your life.Experience the joys of DIY
Reserve Upgrade Options
Air Filter: Support to upgrade high-performancesmoke filter, longer use time and cleaner air
Product Size
300*262*226mm
Work area 130*130mm / Updown space 50mm
Replaceable Lenses & Repair Kit
iCube's Service Life is 10 times higher than others.
Dustproof Metal Nozzle
Fixed Focus Bracket

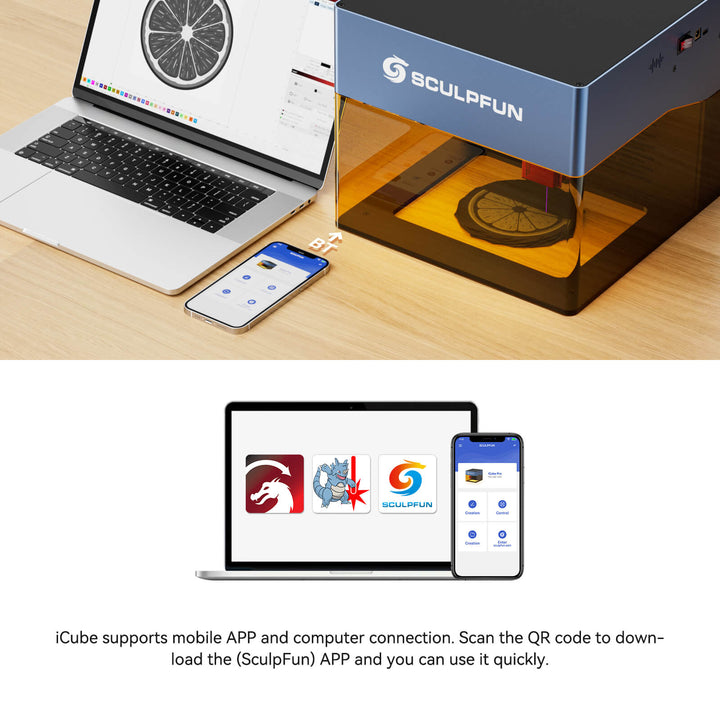

APP Function
iCube supports mobile APP and computer connection.
Reliable Laser Protection
Detachable fully enclosed design eye shield,effectively protects eyes and skin from all angles.Laser protective casing+laser protective glasses, dual choice
Built-in Smoke Filtering System
iCube is equipped with a high-efficiency smoke filtering system, and the machine can be used even in officesliving rooms, and bedrooms without room restrictions
Combine Cutting and Engraving
Meet the multi-craft-needs
Suitable for daily cutting and engraving artworks
Semi-open Structure Design
Unique design without limitation by the size of the engraving objects
10000mm/min High Speed Engraving
Save 50% Engraving Time.
iCube 07:14
Other 14:19
Engraving Objects without Size Limit
With the unique semi-open structure design, there is no limitation by the size of the engraving objects.You can place them inside the machine or put the machine on the surface of some large objects to perform the tasks. The patterns engraving area is 130x130mm which can meet your various engraving demands.
Enclosed Eye Protection Shield
A detachable fully enclosed Acrylic material eye protection shield, which can effectively protect your eyes from different angles.It enables you to observe the laser engraving process without wearing the goggles.
High-Speed Engraving
iCube laser engraver with the 32-bit motherboard greatly improves the engraving efficiency, which can reach 10000mm/min engraving speed.
Multiple Connection Methods
The laser engraving machine supports mobile phone and computer system connection. You can connect to iCube machine via your mobile phone with Sculpfun APP, or you can connect to the computer with the BT function or Type-C interface data cable to use. It is compatible with Win7/Win8/Win10/Win11/MAC/IOS/Android/Linux system.
