1. UV Laser
2. 70x70 Field Lens
3. M3\M5\M6
4. Goggles
5. Calibration Paper
6. Base Assembly
7. Lifting column
8. 150x150 Field Lens (pre-installed)
9. Dog Tag
10. User Manual
11. Security Key
12. U Disk
13. Focusing Sheet
14. Level (shipped separately)
15. Extension cable
16. Basswood Board
17. Tool kit
18. Positioning Bar
19. Ruler
20. Rotary Module Adapter Cable
21. Power cable
22. Data cable
23. Crystal Pillar

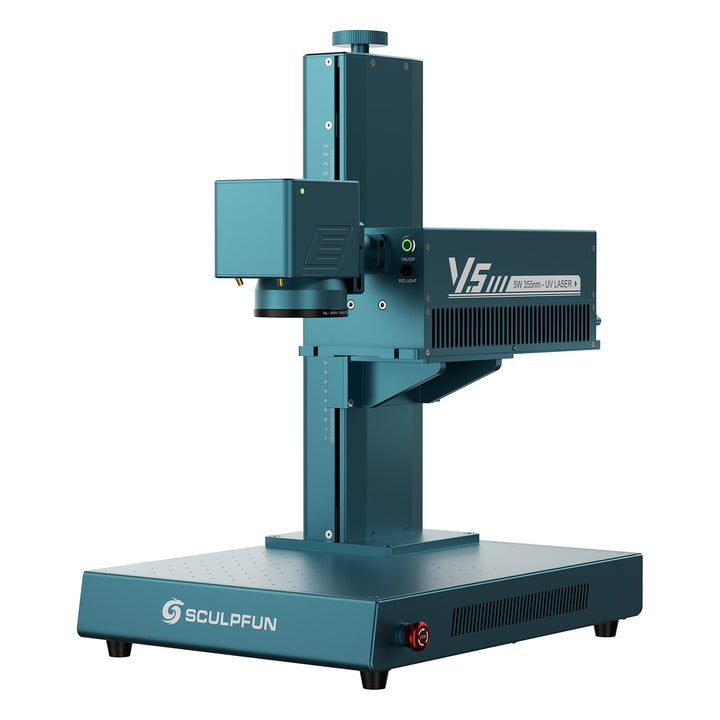

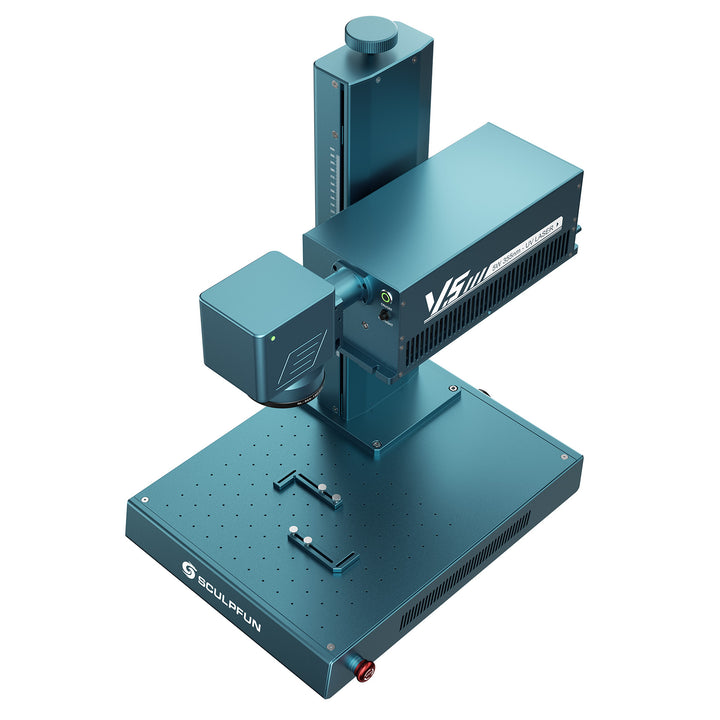

SCULPFUN V5 UV Laser Marking Machine
Black Friday Special ! Final price 2949$ ! Only during black friday !
➤Industrial-Grade Galvo, High Precision & Speed
➤Zero Burn Edge, 355nm UV laser
➤3D Crystal Engraving
➤Unlock Almost All Materials
➤Zero Burn Edge, 355nm UV laser
➤3D Crystal Engraving
➤Unlock Almost All Materials
-
Fast Shipping
Local US & EU Warehouse for most of products -
30 Days Return
Simply return it within 30 days -
1 Year Free Warranty
Provide free replacement within 1 year -
2% rebate on orders
Get 2% of your order back

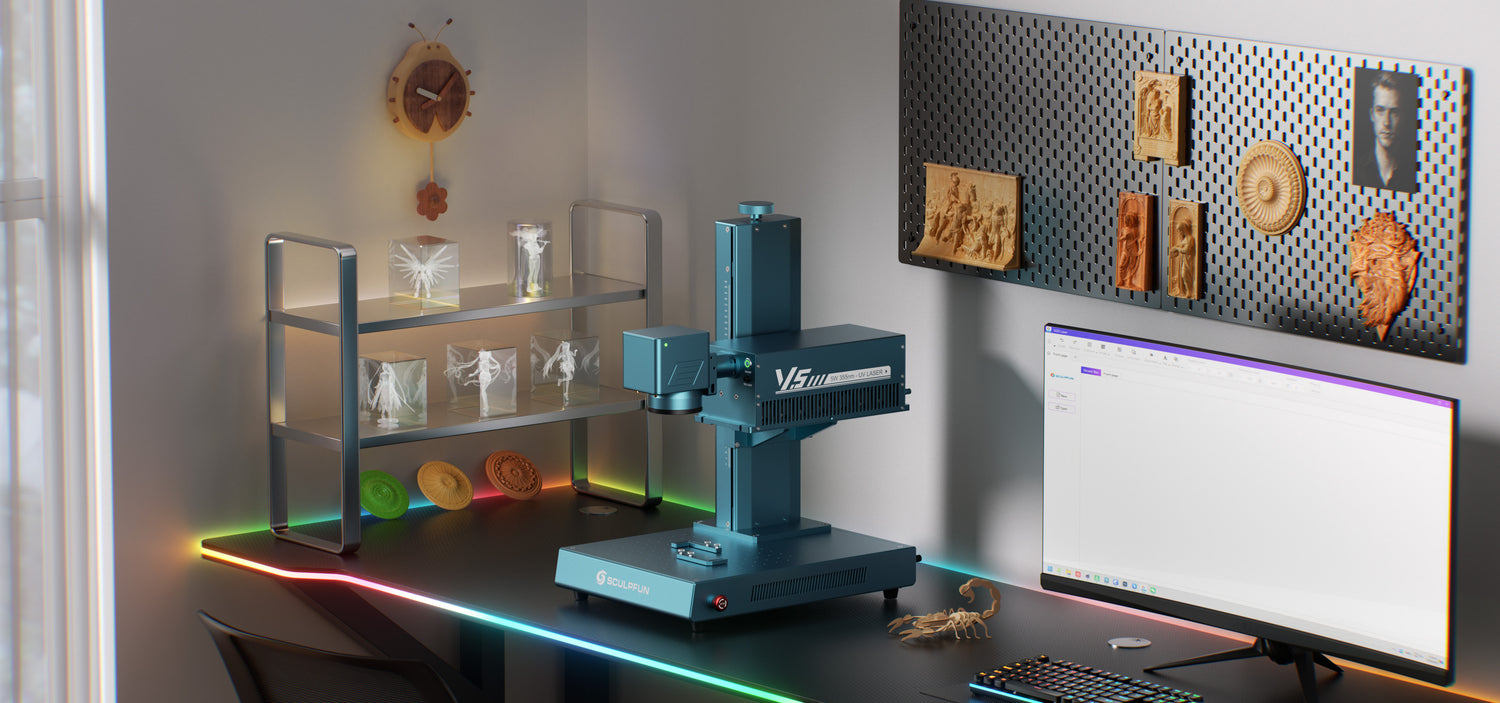

SCULPFUN V5 UV Laser Marking Machine
No Burn, No Boundaries — UV Laser Mastery
4-in-1 Multi-Mode Engraving
(Inner, Relief, Flat, Curved)

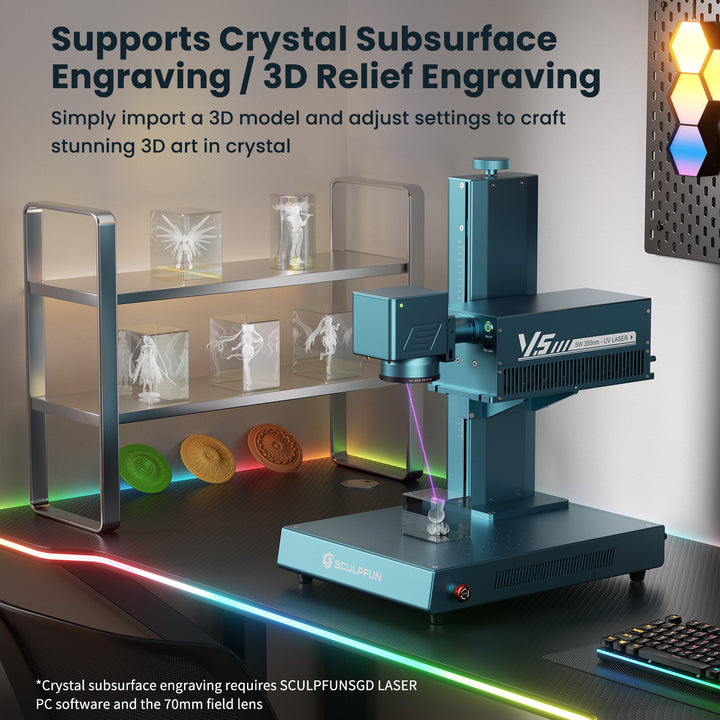

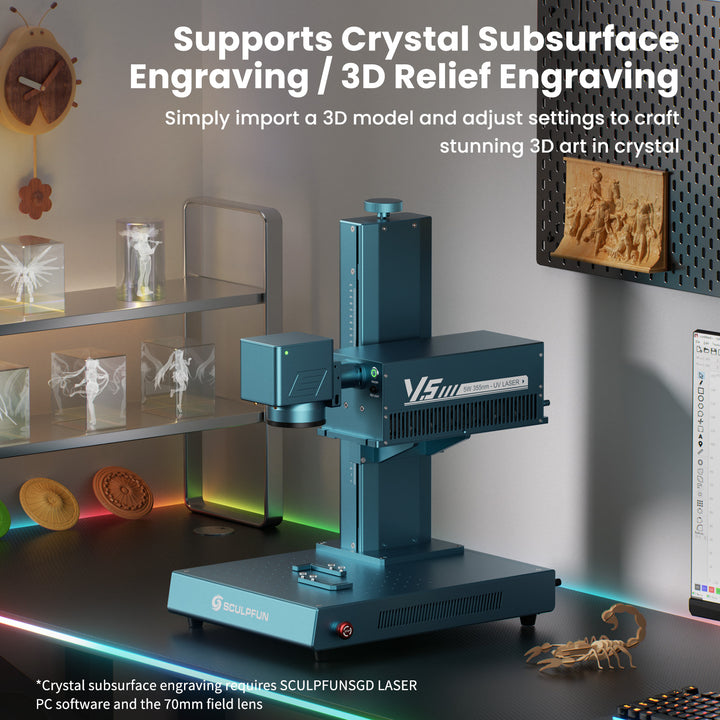

Crystal Subsurface Engraving
The UV laser can directly penetrate crystal to etch delicate floating 3D patterns inside without damaging the surface, creating a stunning visual effect as if it were floating in mid-air.
Flat Surface Engraving
The UV laser integrates speed, precision, and uniformity in one
Curved Surface Engraving
When paired with a chuck and roller, it enables engraving on cylindrical surfaces

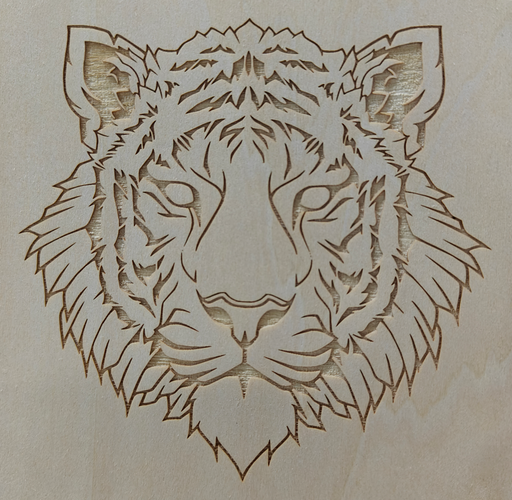

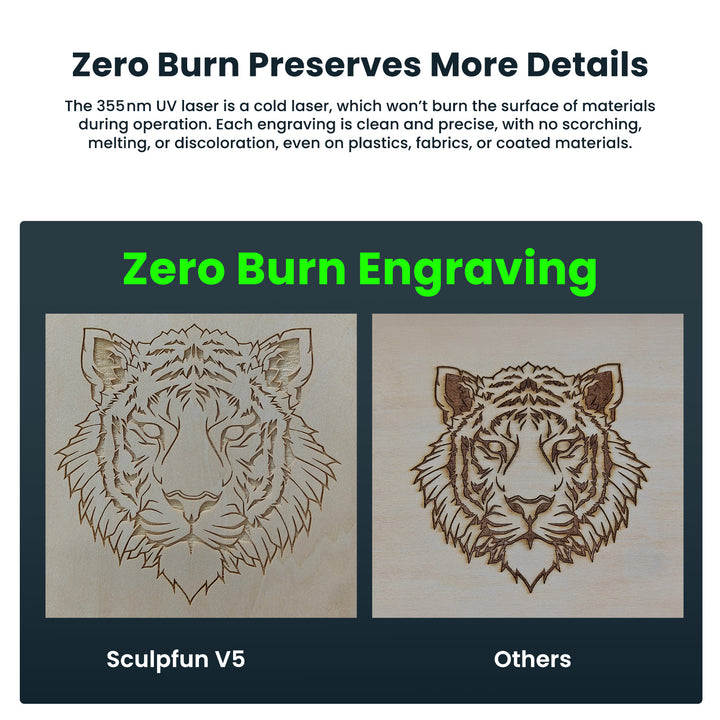

Zero Burn for Maximum Detail
Cold Processing Technology
This 355nm UV laser is a cold laser that won’t burn the surface of materials. Each engraving is clean and sharp, with no scorching, melting, or discoloration, even on plastics, fabrics, and coated materials.
SCULPFUN V5
Others
16K HD Laser, Ultra-Fine Spot
Featuring a spot precision of 0.0019 mm (50x smaller than diode, 100x smaller than CO₂), up to 16K resolution for ultra-HD engraving on almost any material.
V5
±0.0019mm
Diode Laser
0.05-0.1mm
CO2 Laser
0.1-1mm
True Power of V5 UV Laser Engraver

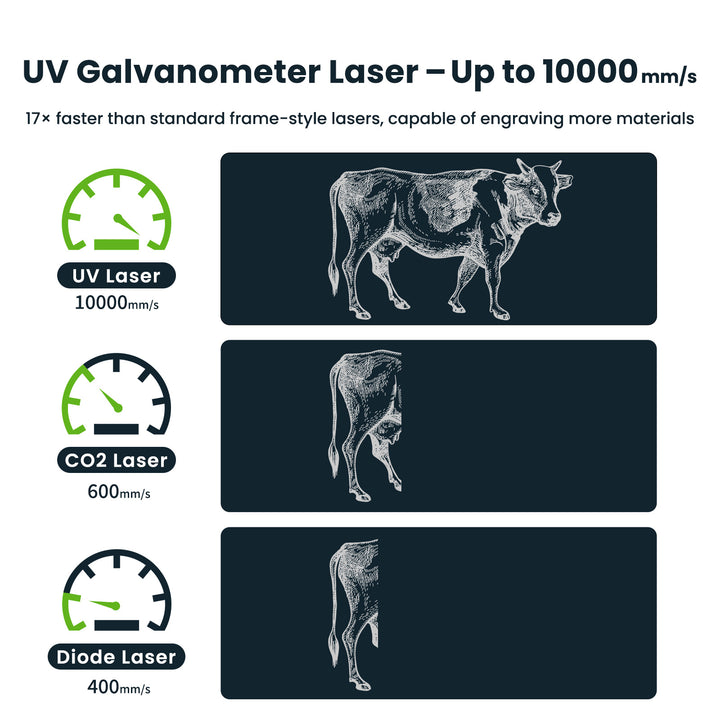

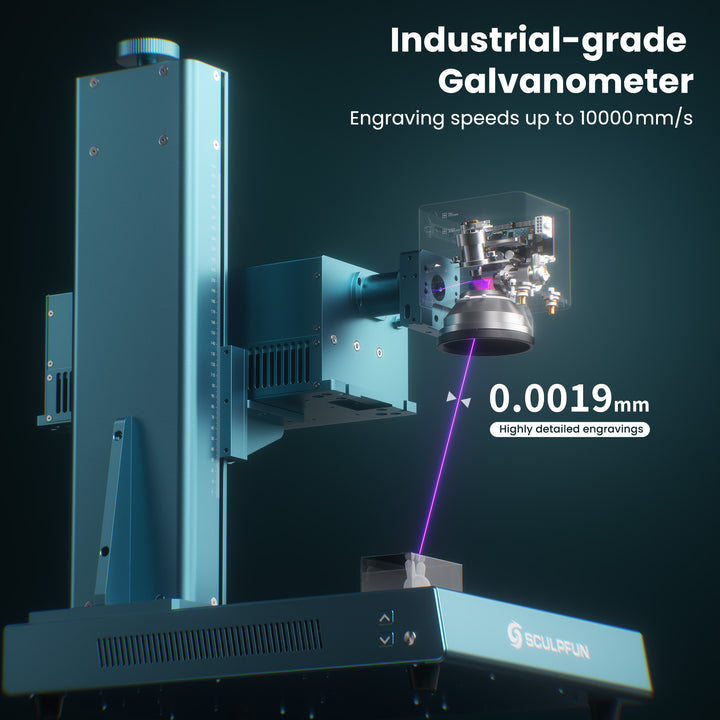

Industrial Galvo System: 10000mm/s Speed
It boasts a truly efficient, high-precision, and professional-grade engraving performance.

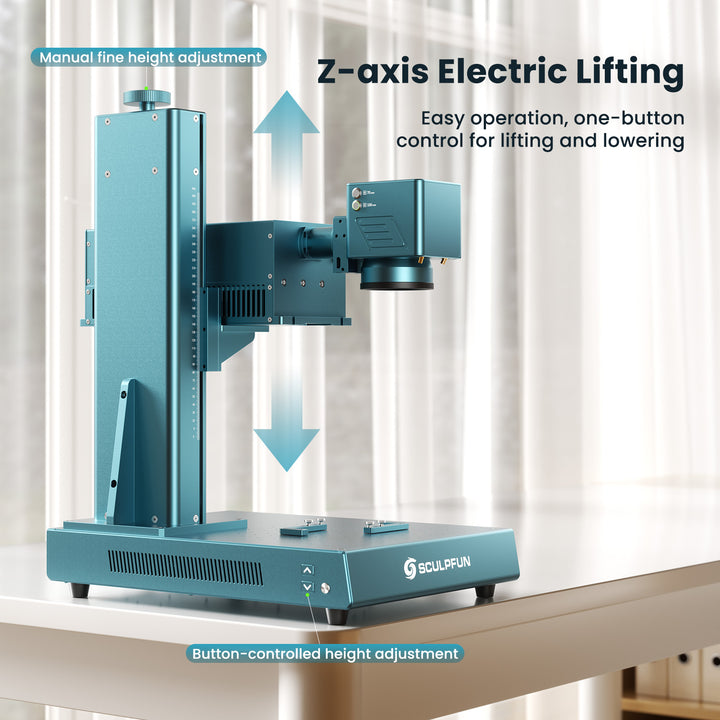

Auto Z & Dual Focus
Dual-laser positioning for instant focus and fast operation. Motorized Z-axis with auto-lift.
Industrial FPGA
Industrial FPGA delivers enhanced, intelligent data processing.

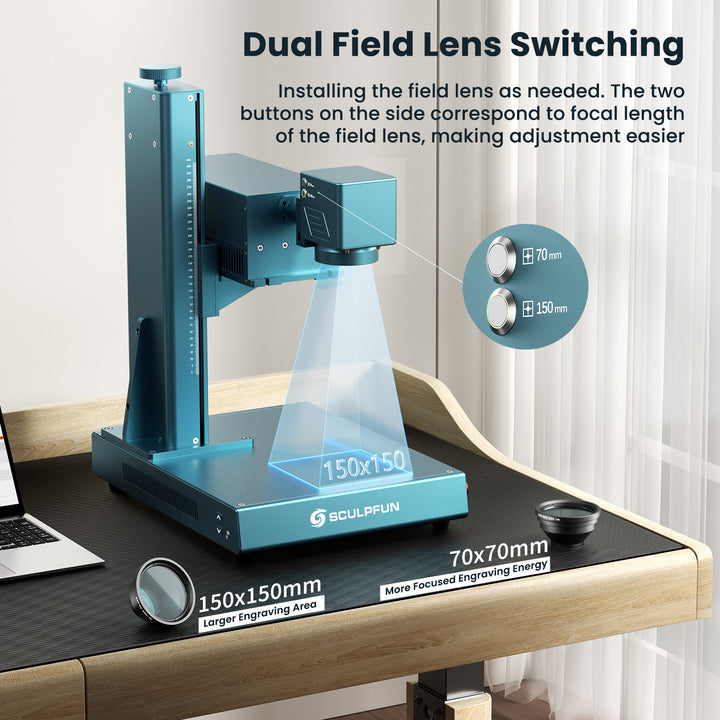

Dual Field Lens Optional for Flexibility
With dual field lens system: 150*150mm and 70*70mm, allowing users to switch based on their needs.
70 × 70 mm
Offers more concentrated power for high-precision tasks like crystal subsurface engraving.
150 × 150 mm
Provides a larger working area, ideal for engraving large-scale materials.
Works on Nearly 1500+ Materials
As the most versatile laser, the UV laser can engrave on over 1500 different materials, from metals and plastics to acrylic, bamboo, glass, tiles, and more, always delivering vivid, lifelike results.
Ceramics
Textile
Iron
Aluminum
Glass
Leaf
Slate
Crystal
Acrylic
Wood
Fruit
Leather

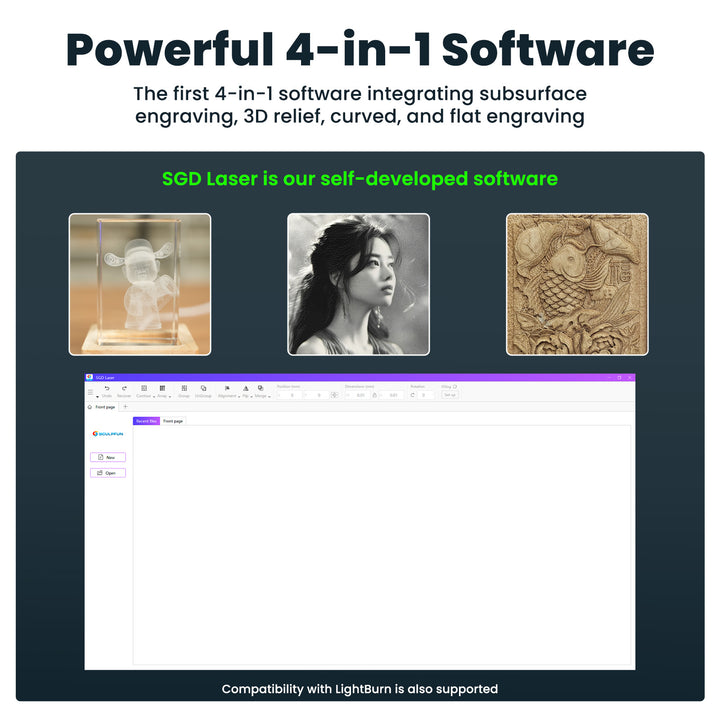

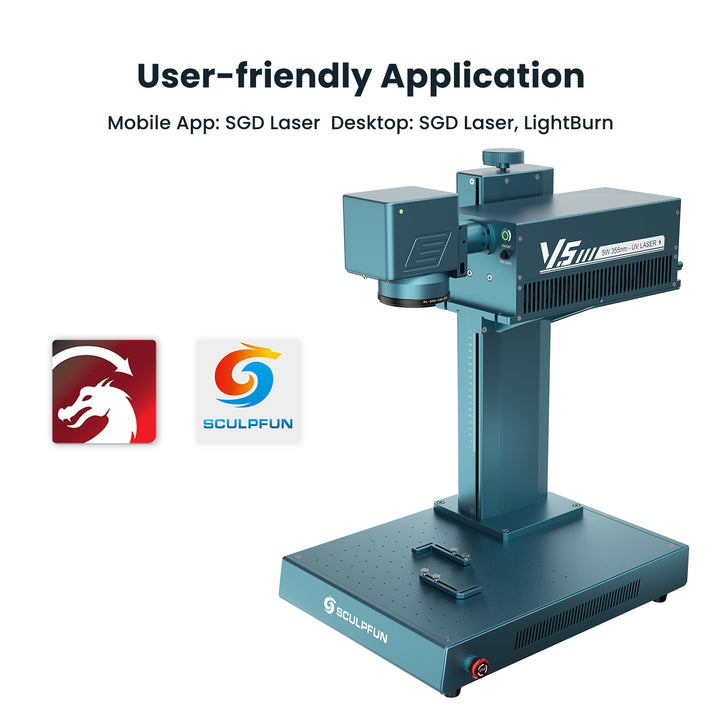

Powerful 4-in-1 Software
SGD Laser, our self-developed 4-in-1 software for subsurface engraving, 3D relief, curved surface, and flat processing, fully unleashes the power of the SCULPFUN V5.
It also supports LightBurn, though SGD Laser offers a more seamless and feature-rich experience.

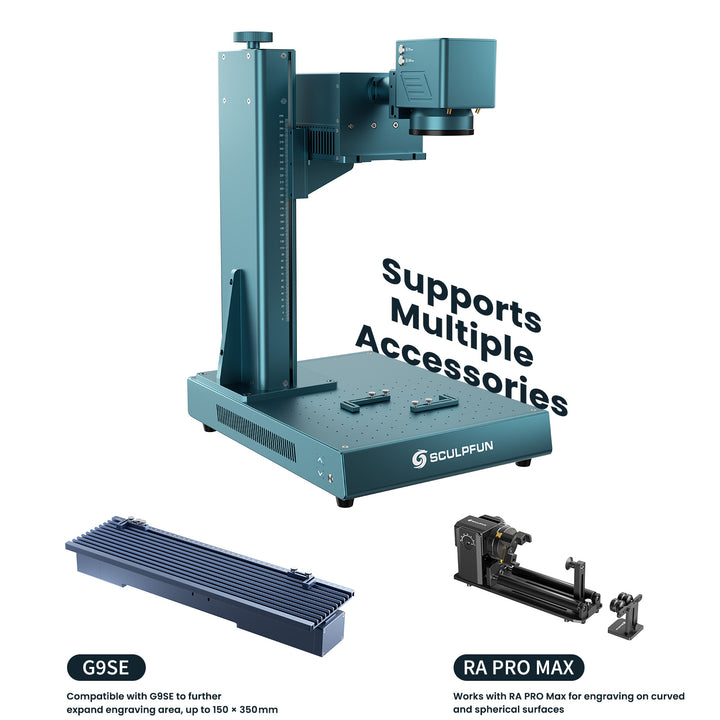

Extensive Accessories Support
Compatible with chuck and roller attachments for curved surface engraving. It can also be paired with a slider extension to expand the working area.

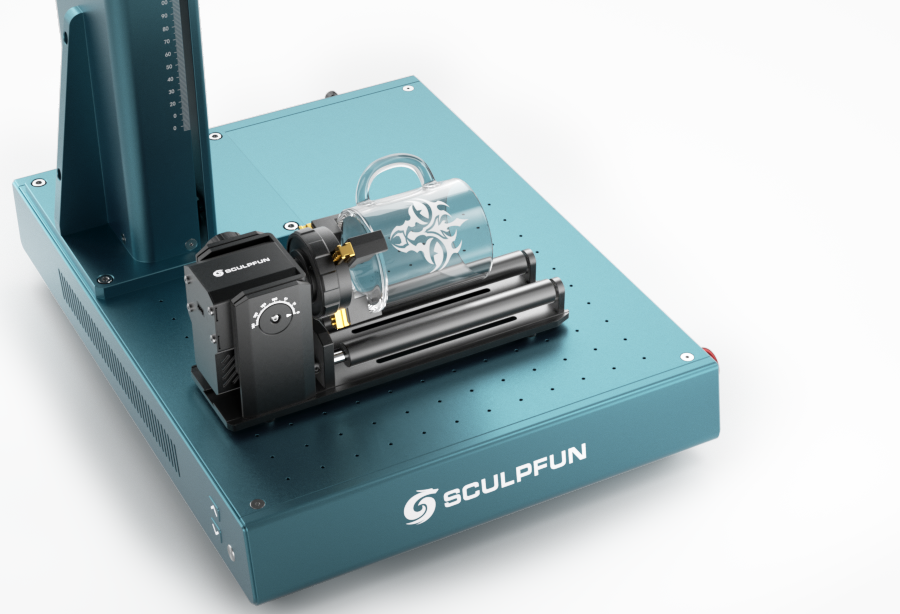

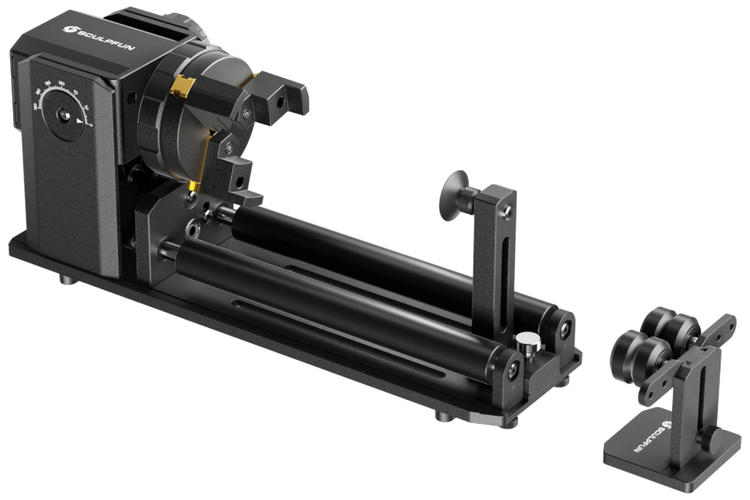

RA PRO MAX
Achieving precise results on almost any round or irregular surface

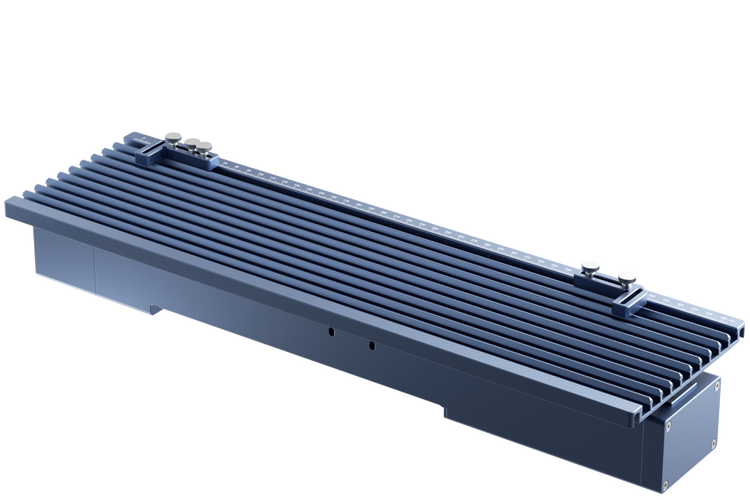

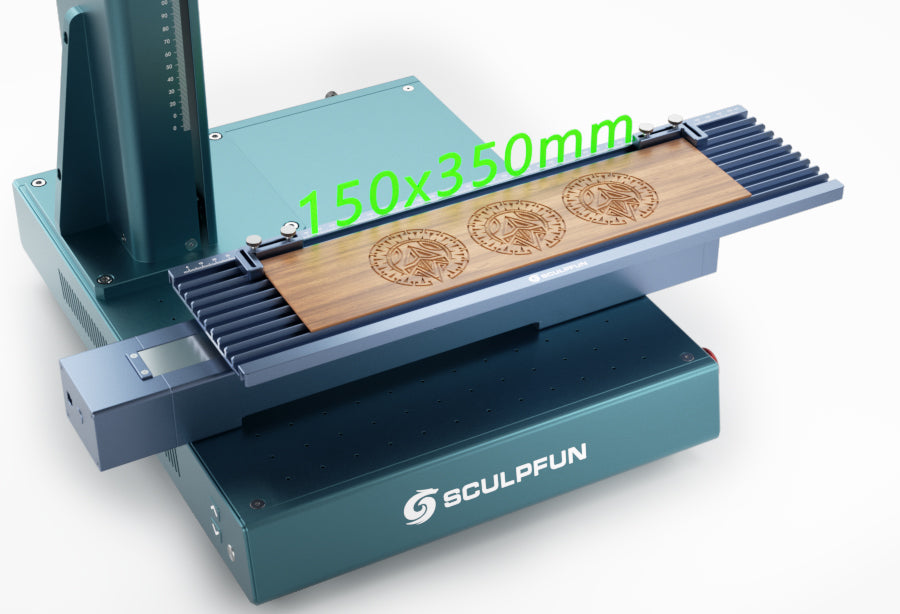

G9SE
Pair with the G9SE to enlarge your workspace up to 150*350mm

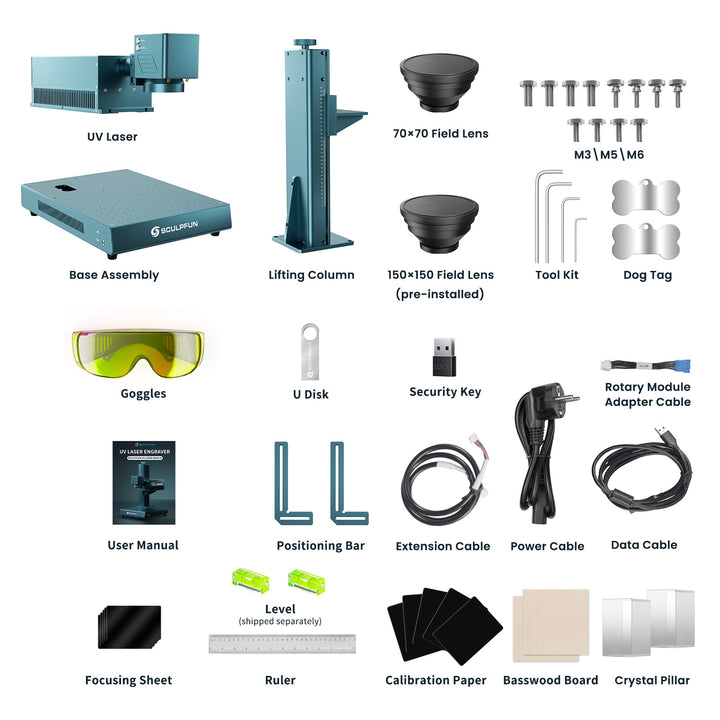

Package Contents
Specification
Model
Model
V5
Laser Power
5W (Turbo Mode up to 6W)
Laser Wavelength
355nm
Working Area
150*150 mm / 70*70 mm
Spot Size
0.0019mm
Max. Working Speed
10000mm/s
Processing Material Type
Paper, Wood, Leather, MDF, Felt, Bamboo, Fabric, Stainless Steel, Some dark opaque acrylic, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal / Stainless Steel, Aluminum, Brass, Silver, Plastic, Platinum, Titanium, Gold, Crystal, Glass
Repeated Positioning Accuracy
0.001mm
Focusing Method
Electric Lifting
Supported Systems
Windows / MacOS / Android / iOS
Supported Software
SGD Laser(Enhanced Compatibility) / LightBurn Pro
Connection Method
WiFi / USB

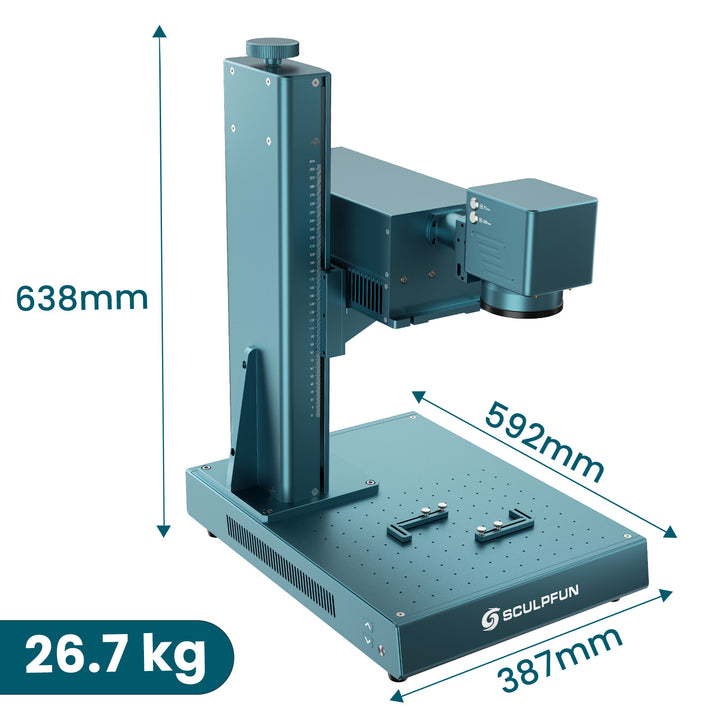

Machine Size
387*592*638mm
Machine Weight
26.7kg
