[Launch price] SCULPFUN Relilaser All-in-One Laser Welder

~~$3,999.00~~ $3,799.00

In Stock Pre order Out of stock

Launch Prices
R900: $3,799 | R1300: $4,999

➤ All-in-One Laser Welding, Cutting & Cleaning
➤ R Mode Power, Up to 1350W
➤ Up to 6mm Welding Capacity
➤ Up to 10X Faster Than TIG/MIG
➤ 108+ Smart Presets, Easy to Start
➤ Built-In Safety Protection

Fast Shipping
Local US & EU Warehouse for most of products
30 Days Return
Simply return it within 30 days
1 Year Free Warranty
Provide free replacement within 1 year
2% rebate on orders
Get 2% of your order back

SCULPFUN Relilaser
Laser Welder

Professional Welding, Wherever You Work

Weld Any Material, Thickness, or Angle

From different metals and thicknesses to challenging welding angles, Relilaser gives you the flexibility to take on more jobs with confidence.

Various Thicknesses

Up to 5mm Stainless Steel, Aluminum, Carbon Steel & Galvanized Sheet

Various Thicknesses

Up to 5mm Stainless Steel, Aluminum, Carbon Steel & Galvanized Sheet

Various Joint Types

Flexible welding for flat, corner, and hard-to-reach areas.

Various Joint Types

Flexible welding for flat, corner, and hard-to-reach areas.

Various Metals

Fine-tune your settings for both thin and thick metals.

Various Metals

Fine-tune your settings for both thin and thick metals.

Available
Materials

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Carbon

Carbon

Brass

Brass

Galvanized steel

Galvanized steel

Titanium

Titanium

Magnesium alloys

Magnesium alloys

Painted metals

Painted metals

Alloy steel

Alloy steel

Clad

Clad

Think Laser Welding Is Hard to Learn?

It’s Easier Than You Think.

Smart presets and precise laser control help you get started quickly and achieve consistent results.

Your First Weld Could Look This Good

Laser welding

Your First Weld Could Look This Good

Clean, smooth, and consistent—even when you're new to laser welding. Choose your settings and start welding.

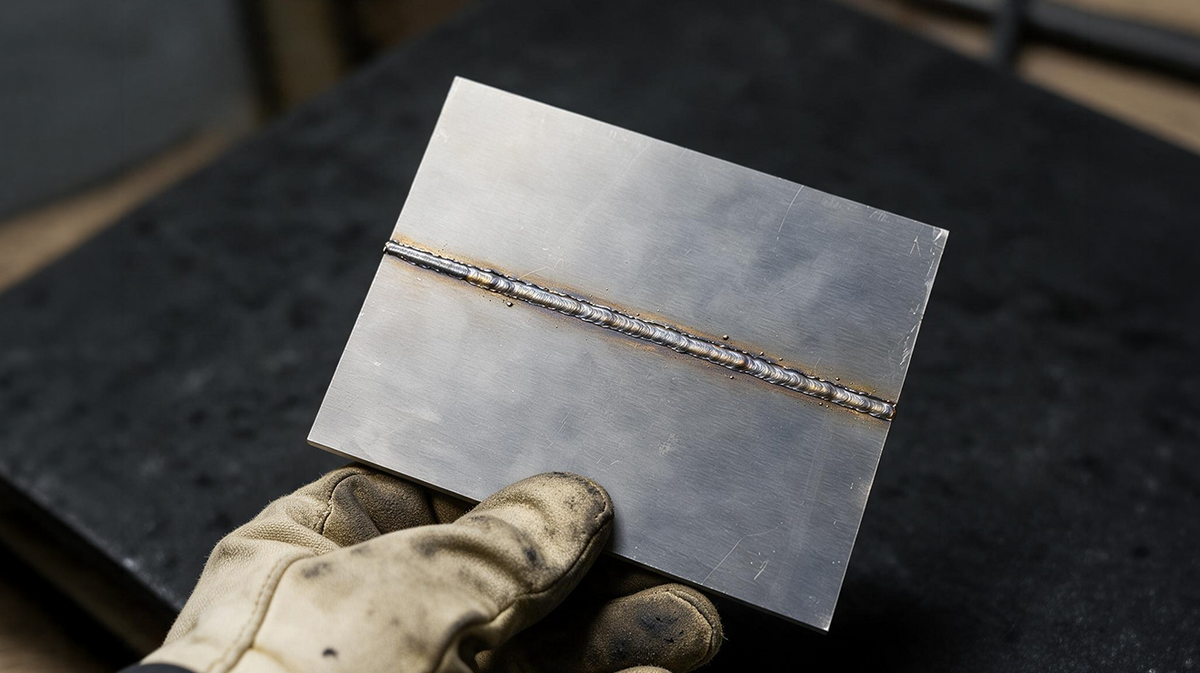

MIG or TIG? Expect a Learning Curve

Traditional welding

MIG or TIG? Expect a Learning Curve

Uneven beads, rough edges, and more spatter. Getting consistently clean results takes practice.

Up to 10X Faster than TIG/MIG

Spend less time welding and more time getting the job done, with fast, smooth, and consistent results.

metal

Weld Like a Pro, From Day One

108+ smart presets, a 7" industrial LED touchscreen, and a smart operating system make it easy to start, while Expert Mode gives you full control.

SIMPLE MODE

108+ Smart Presets, Ready to Weld . Select the material and thickness, choose a preset, and start welding in just a few clicks.

EXPERT MODE

Adjust laser power from 10–100% in precise 1% increments, and fine-tune scan width, frequency, wire feed speed, pulse settings, and more for greater control.

Protected by Multiple Safety Features

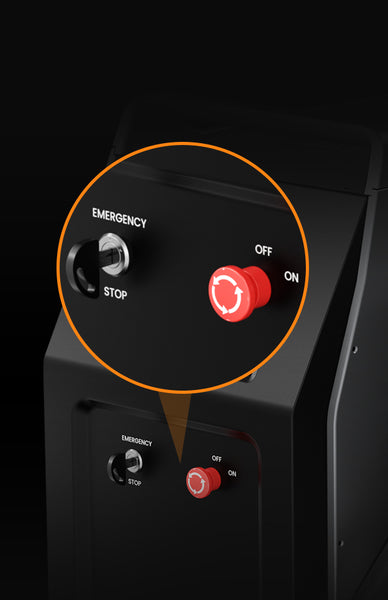

Safety Key & E-Stop

OD8+ Safety Glasses & Gloves

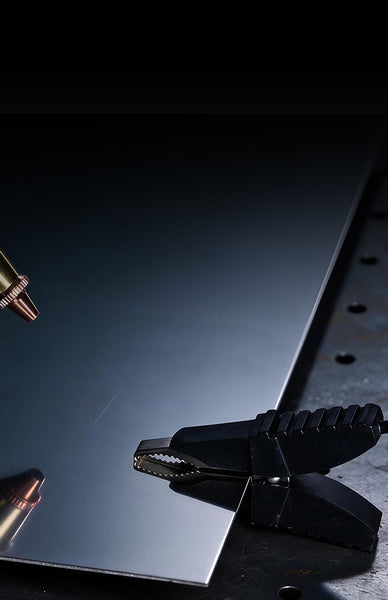

Closed-Circuit Safety Interlock

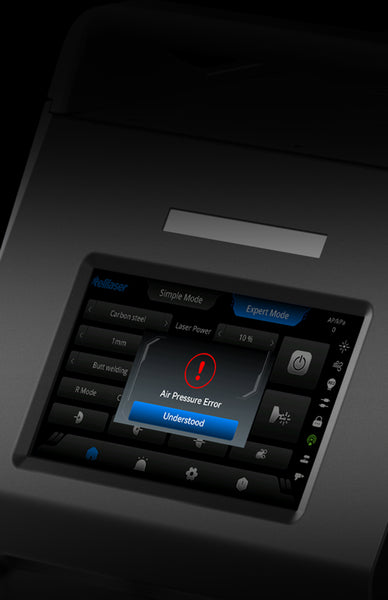

17 Built-In Diagnostics

Built to Take on More

Deeper penetration, flexible welding modes, and precise control help you tackle more welding challenges with confidence.

Up to 6mm Welding Thickness

Weld up to 6mm stainless steel and carbon steel with the R1300, or up to 4mm with the R900.

Versatile Welding Modes

Choose from Continuous, Spot, Pulse, and Fish-Scale Welding modes to handle different welding tasks with greater flexibility.

More Ways to Work with Metal

From surface cleaning and precision cutting to underwater welding, Relilaser gives you more ways to handle demanding metalworking tasks with one versatile system.

Clean Faster, Finish Better

Remove rust, oxide, and residue with up to 10mm one-pass cleaning width using the 800mm focusing lens.

Clean Faster, Finish Better

Remove rust, oxide, and residue with up to 10mm one-pass cleaning width using the 800mm focusing lens.

Handheld Cutting

Make smooth, precise cuts on metal up to 3mm, even on-site or in tight spaces.

Handheld Cutting

Make smooth, precise cuts on metal up to 3mm, even on-site or in tight spaces.

Underwater Welding

Arc-free precision with no electrode changes, helping you weld faster and more efficiently than TIG/MIG.

Underwater Welding

Arc-free precision with no electrode changes, helping you weld faster and more efficiently than TIG/MIG.

Built for Demanding Work, Built to Last

From -10°C to 40°C environments to 8-hour workdays, the SCULPFUN Relilaser is built for demanding workloads with R Mode, high-performance cooling, and a 35,000-hour service life. Water- and dust-tested for reliable performance in challenging working conditions.

-10°C to 40°C

Wide Temperature Adaptability

8 Hours × 5 Days

Built for Extended Operation

35,000 Hours

Long Service Life

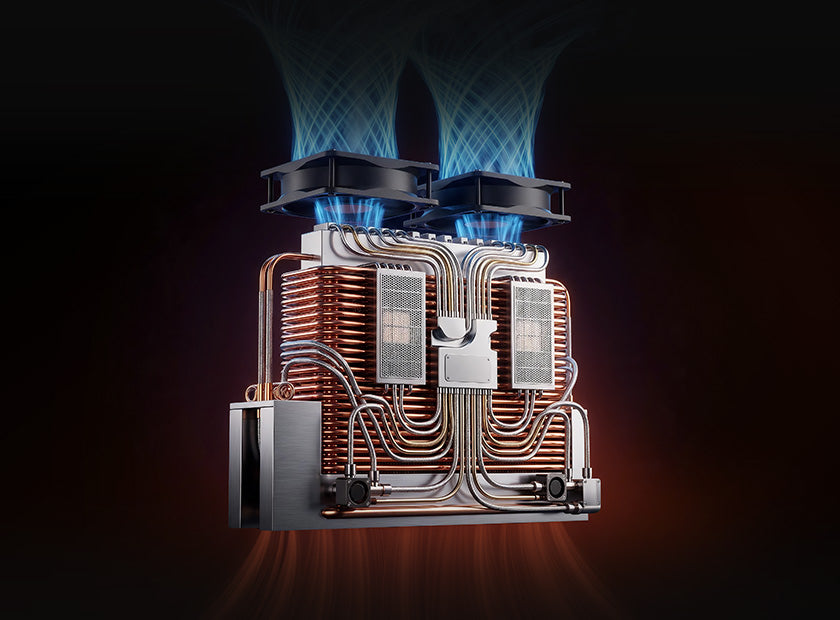

Smart Adaptive Thermal Management

Smart Adaptive Thermal Management

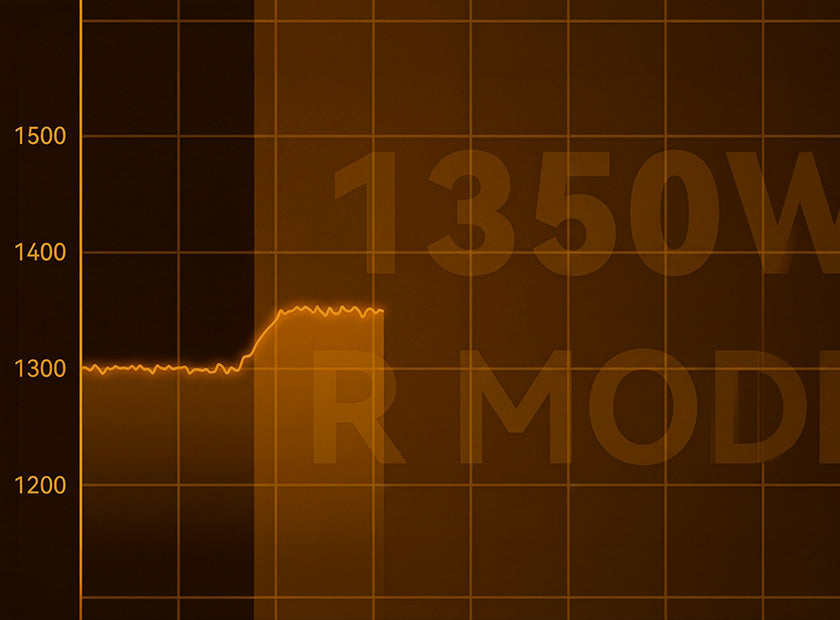

R Mode: More Power for Demanding Work

R Mode: More Power for Demanding Work

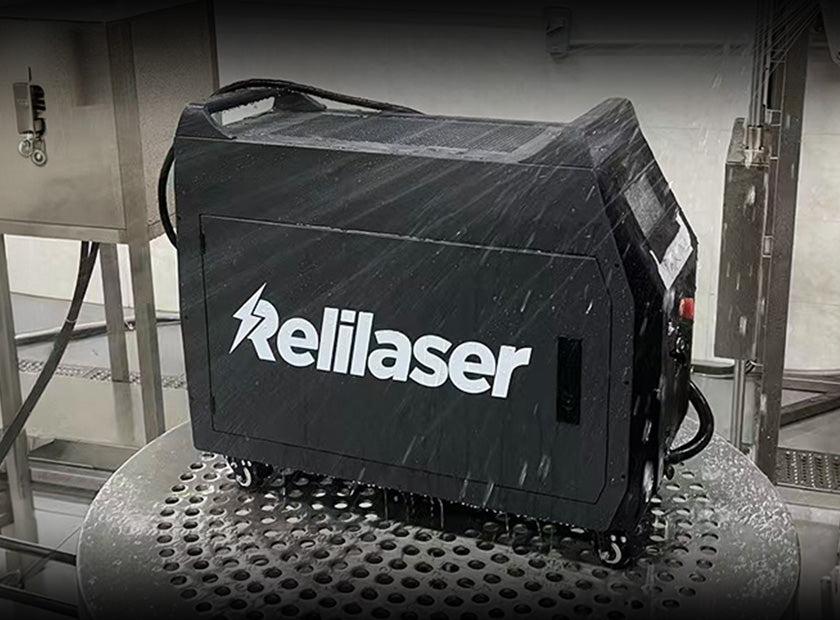

Water & Dust Tested

Water & Dust Tested

Smart Adaptive Thermal Management

Smart Adaptive Thermal Management

R Mode: More Power for Demanding Work

R Mode: More Power for Demanding Work

Water & Dust Tested

Water & Dust Tested

Designed Around Your Workflow

Built-In Wire Feeder: Keep wire feeding integrated into the machine for a cleaner, more efficient workspace.

metal

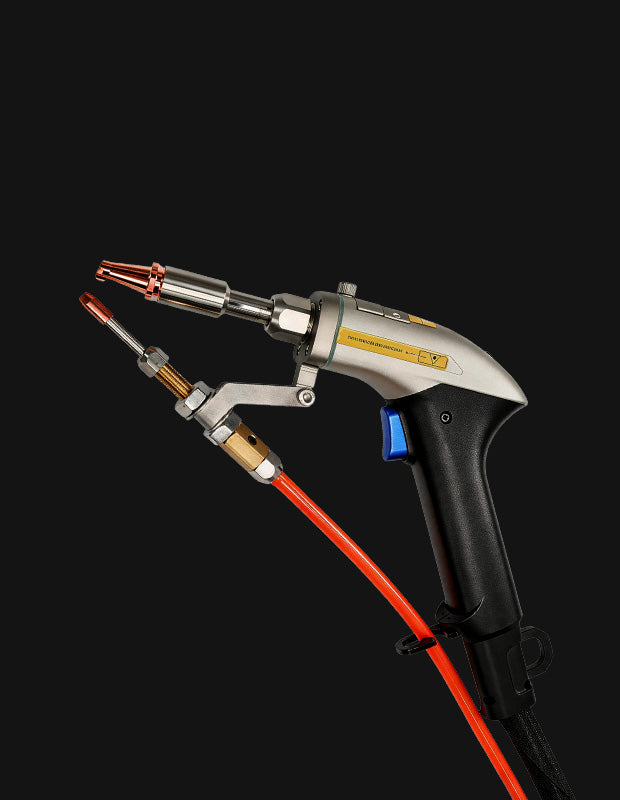

680g QCS Welding Gun for Easy Handling

680g QCS Welding Gun for Easy Handling

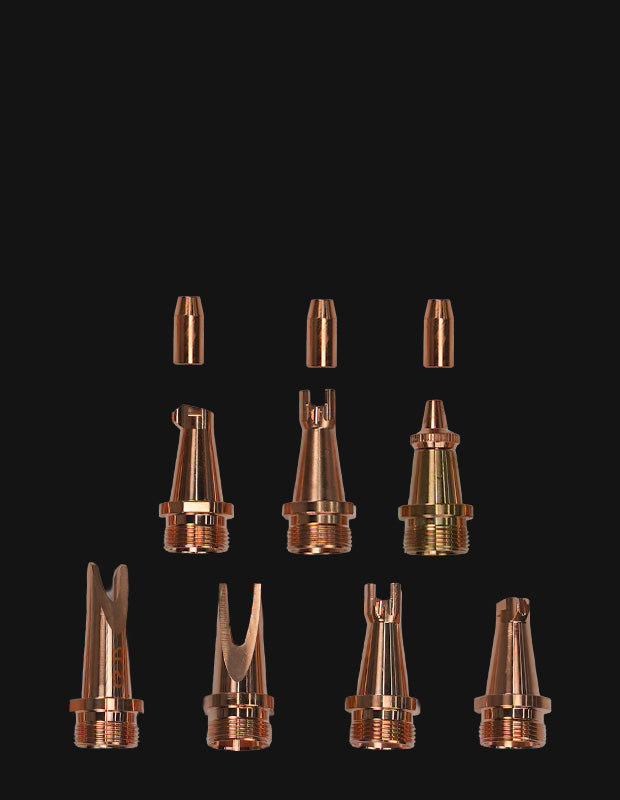

Multiple Laser Nozzles for Flexible Welding

Multiple Laser Nozzles for Flexible Welding

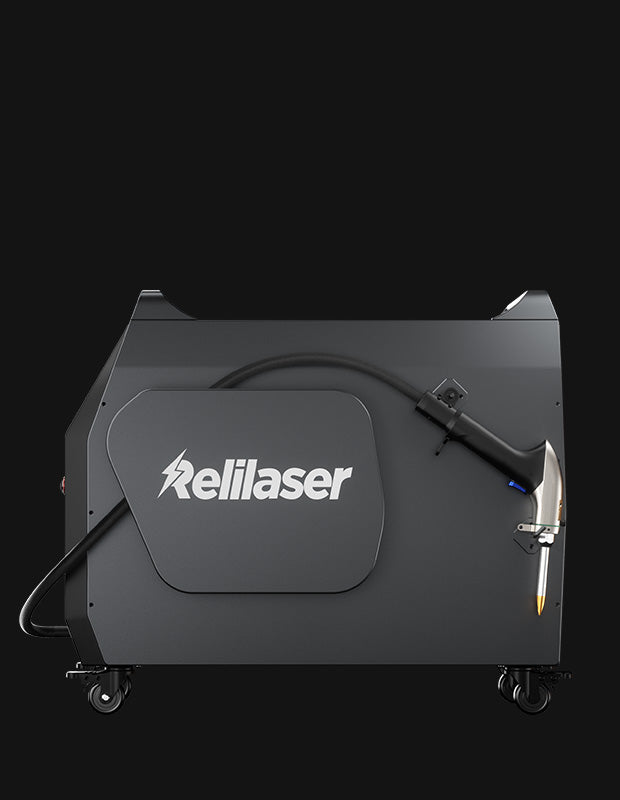

Compact Mobile Welder with Four Wheels

Compact Mobile Welder with Four Wheels

Professional Welding, Made for Real Life

From family projects and backyard grills to delicate rings, Relilaser gives you the control and efficiency to turn different metalworking ideas into finished pieces with less learning and more doing.

metal

Package Contents

1. Machine body
2. Wire Feeder Tube and Components
3. Air Hoses and Adapter
4. Tool Kit
5. Laser Key Switch
6. Wire Feed Rollers
7. Grounding Wire
8. Instruction Manual
9. Protect Lens
10. Protective Goggles
11. Earplugs
12. Welding Torch Pendantand Screws
13. Welding Gloves
14. Copper Nozzle Accessory Box
15. Safe Return Route

Specification

Model

View More

View More

Model

R1300

R900

Processing Capacity

Laser Power

1300W

900W

Laser Source

Fiber Laser

Fiber Laser

Laser Wavelength

1080±10 nm

1080±10 nm

Process Modes

Welding / Cutting / Cleaning

Welding/Cutting/Cleaning

Welding Modes

Fish Scale / Pulse / Continuous / Spot

Fish Scale / Pulse / Continuous / Spot

Supported Wire Diameter

0.031-0.063 in (0.8-1.6 mm)

0.031-0.063 in (0.8-1.6 mm)

Welding Capacity (Single-sided Penetration)

Min. 0.02" (0.5mm) metal
Max. 0.24" (6mm)Stainless Steel/Carbon Steel
0.16" (4mm)Aluminum/Galvanized Steel
0.12" (3mm)Brass

Min. 0.02" (0.5mm) metal
Max. 0.16" (4mm)Stainless Steel/Carbon Steel
0.12" (3mm)Aluminum/Galvanized Steel
0.10" (2.5mm)Brass

Cleaning Capacity

Up to 0.16 in (4 mm) standard
Up to 0.39 in(10 mm) with included F800 Focus Lens

Up to 0.16 in (4 mm) standard
Up to 0.39 in(10 mm) with included F800 Focus Lens

Supported Materials

Stainless Steel (304, 316, 410,430)
Aluminum Alloys (1060, 5083, 6061, 6063, 7075)
Carbon Steel (A36, Q235,1095, #45)
Titanium Alloys (Gr.5, Ti-15V-3Cr-3Sn-3Al)
Brass (C26000,C28000,C36000)
Galvanized Steel (DX51D)
Magnesium Alloys, Nickel Alloys, Zinc Alloys

Stainless Steel (304, 316, 410,430)
Aluminum Alloys (1060, 5083, 6061, 6063, 7075)
Carbon Steel (A36, Q235,1095, #45)
Titanium Alloys (Gr.5, Ti-15V-3Cr-3Sn-3Al)
Brass (C26000,C28000,C36000)
Galvanized Steel (DX51D)
Magnesium Alloys, Nickel Alloys, Zinc Alloys

General Information

Efficiency Electro-Optical Conversion

30%

30%

Cooling Method

Air Cooling

Air Cooling

Laser Safety Class

Class 4

Class 4

Laser Source Lifetime

35,000 hrs

35,000 hrs

Supported Gases

Nitrogen (N2), Argon (Ar), CO2

Nitrogen (N2), Argon (Ar), CO2

Minimum Supply Pressure

116 psi (0.8 MPa)

116 psi (0.8 MPa)

Welding Gas Requirement

44 psi @ 0.7 CFM (0.3 MPa@20 L/min)

44 psi @ 0.7 CFM (0.3 MPa@20 L/min)

Cutting Gas Requirement

174 psi @ 2.1 CFM (1.2 MPa @ 60 L/min)

174 psi @ 2.1 CFM (1.2 MPa @ 60 L/min)

Input Voltage

200-240V AC, 50/60Hz

200-240V AC, 50/60Hz

Full Load Current

MAX 22A

MAX 16A

Rated Power Consumption

4800W

3400W

Storage Temperature

-4°F to 185°F(-20°C to 85°C)

-4°F to 185°F(-20°C to 85°C)

Operating Temperature

14°F to 104°F(-10°C to 40°C)

14°F to 104°F(-10°C to 40°C)

Relative Humidity

10-85% RH

10-85% RH

Dimensions

Machine Dimensions

26.7 x 11.3 x 19.8 in (677 x 288 x 504 mm)

23.0 x 11.7 x 18.5 in (583 x 296 x 470 mm)

Machine Weight

92.6lb (42 kg)

66lb (30 kg)

Welding Gun Weight

1.4 lb (0.65 kg)

1.4 lb (0.65 kg)

Package Dimensions

37.0 x 18.1 x 29.1in (940 x 460 x 740 mm)

33.5 x 18.9 x 27.6 in (850 x 480 x 700 mm)

Cable Length

16.4ft (5m)

16.4ft (5m)

FAQ

1. What is the difference between the Relilaser R900 and R1300?

2. What materials can the Relilaser laser welder weld?

3. Can the Relilaser R-Series cut and clean metal as well as weld?

4. Is the Relilaser R-Series suitable for beginners with no welding experience?

5. What safety features does the Relilaser R-Series include?

6. What welding modes does the Relilaser R-Series support?

7. Which shielding gases are compatible with the Relilaser R-Series?

8. What safety measures should I take when operating the Relilaser R-Series?

9. What power supply does the Relilaser R-Series require?

10. How does laser welding compare with traditional TIG and MIG welding?
